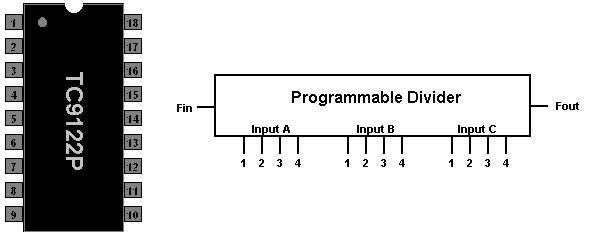

TC9122 Programmable Divider



Pin Name Description
1 Vcc Positive Supply Voltage
2 Fin Divider Input
3 Programable Input
4 Programable Input
5 Programable Input
6 Programable Input
7 Programable Input
8 Programable Input
9 Programable Input
10 Programable Input
11 Programable Input
12 Programable Input
13 Programable Input
14 Programable Input
15 Programable Input
16 Programable Input
17 F out Divider Output
18 Vss Ground
